The Athena WS-108(L/R) steam shower features a high-output 4.5KW steam engine, 6 acupressure body jets, and a removable wooden stool.
The WS-108(L/R) is a spacious steam shower designed for smaller bathrooms without sacrificing quality. The real oak wood ceiling and floor grids, combined with a heavy duty hinged glass door and polished aluminum trim add style and distinct luxury. Also available as a right hand unit.

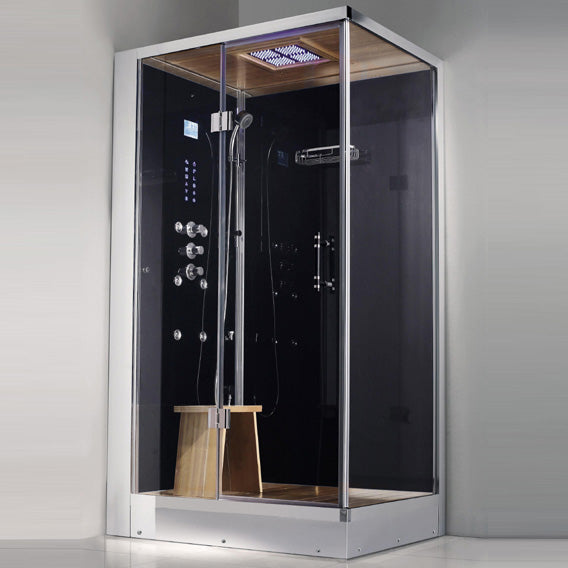

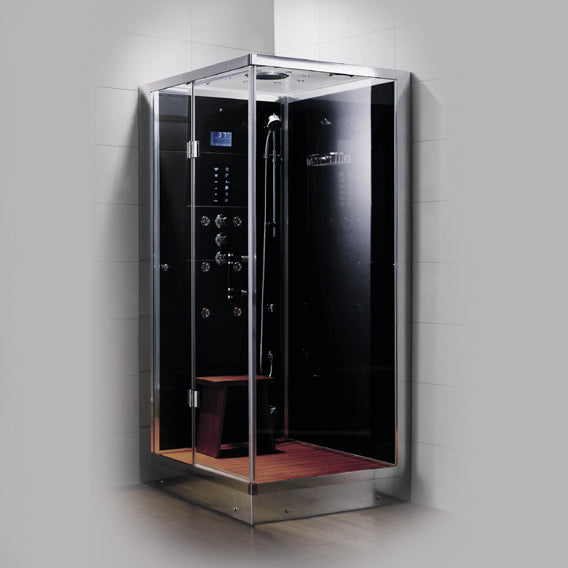

Athena WS-108(L/R) Steam Shower
Athena WS-108L Steam Shower Features: |  |  |
|---|---|---|
| 7 Year Warranty | ||
| Exterior Dimensions: 39"L x 32"W x 89"H | ||
| 220V ETL Certified | ||
| 4.5KW Steam Generator | ||
| 6 Acupuncture Water Body Jets | ||
| Right or Left Hand Unit | ||
| Deluxe Rainfall Shower Head | ||
| Oak Wood Ceiling w/ LED Lighting | ||
| Black Tempered Glass Walls | ||
| Oak Wood Floor Grid | ||
| Adjustable Handheld Shower | ||
| Oak Wood Waterproof Stool | ||
| FM Radio w/ MP3 | ||
| Aromatherapy Dispenser | ||
| Touch Glass Control Panel | ||
| Computer Control Panel with Timer | ||
| Drain with Tap Included | ||
| Polished Aluminum Trim | ||
| Ventilation Fan | ||
| Overheat Protection |
FAQs
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes.
You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
One 30 AMP GFCI Breaker.
I would like to place on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case by case type question. Please consult your contractor based off of these weights we have provided.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit.
Flex hoses are included for easy hook ups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is Athena WS-108L Steam Shower steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit.
All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower.
All of the steam showers will sit flush against the wall.
Do I need an access panel for Athena WS-108L Steam Shower?
The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access.
The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
Warranty
All steam showers carry a (7) seven year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating or cracking.
Structural components include the acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one year guarantee against defects.
Athena Steam Showers carries most replacement parts in stock and will arrange for a spare part to be delivered to you.
The unit must be installed by a licensed plumber and electrician, or it will void the warranty of the unit from the manufacturer.
The purchaser of the steam shower accepts full responsibility and liability for its proper use, operation, and installation.
This unit is not to be used for commercial purposes. The purchaser also agrees to hold harmless and indemnify MesaSteamShowers.com from any actions, lawsuits, judgments, or liability claims arising from the use of these products.
Athena Steam Showers is not responsible for any liability or losses accruing from plumbing or electrical installation.
It is the customers' responsibility to confirm the product will comply with their state, county or city codes. If you will be receiving an inspection by a county or city inspector, please ask them what they require.
If a customer purchases any steam shower unit or bathtub that does not pass inspection, we will allow returns subject to the following conditions.
You will be able to return the unit for purchase price of unit, less the original shipping fee, return shipping fee, and less a restocking fee of 15% if the unit is in the original packaging. If the steam shower unit or bathtub was opened, or opened and assembled, a 25% restocking fee will apply.
Athena WS-108L Steam Shower Specification Sheet:
