Summit 17 Cu.Ft. Dipping Cabinet - NOVA53PDC
Summit Commercial offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneeze guards for convenient serving.

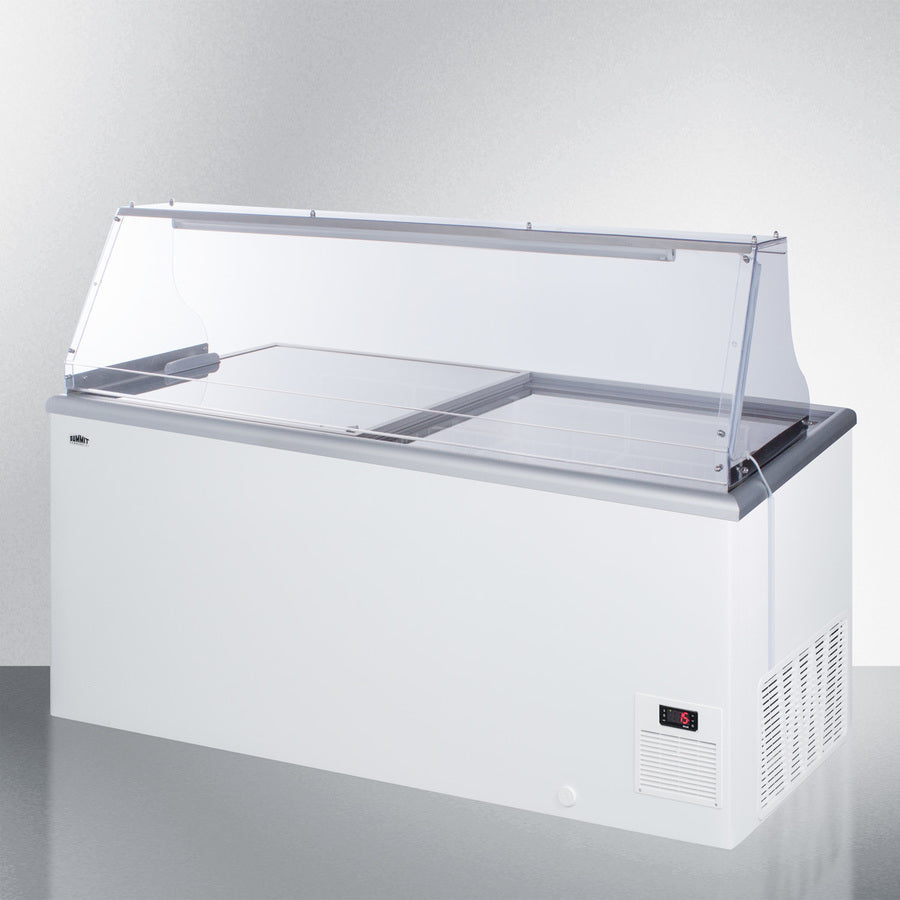

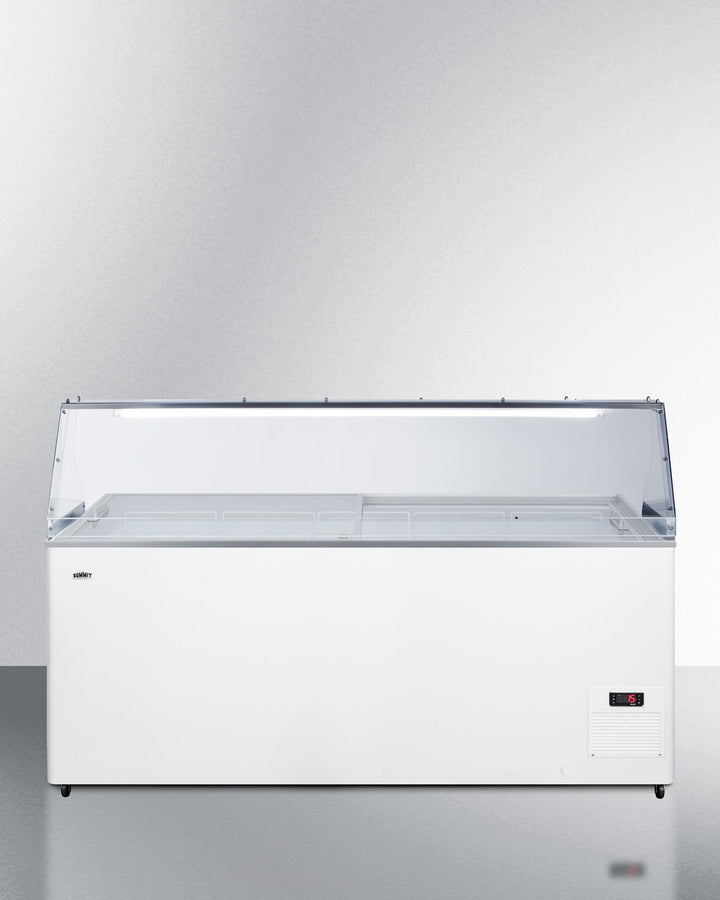

Made for us by Elcold in Denmark, the NOVA53PDC is a 61" wide flat top ice cream freezer with a clear poly-carbonate sneeze guard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods.
The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We preset the unit to -4ºF.
Inside, the NOVA53 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets.
This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.
The NOVA53PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available.
Note: Gelato pan holders are also available.
Features
- Commercially listed: UL-S listed to NSF-7 Standards for use in commercial establishments

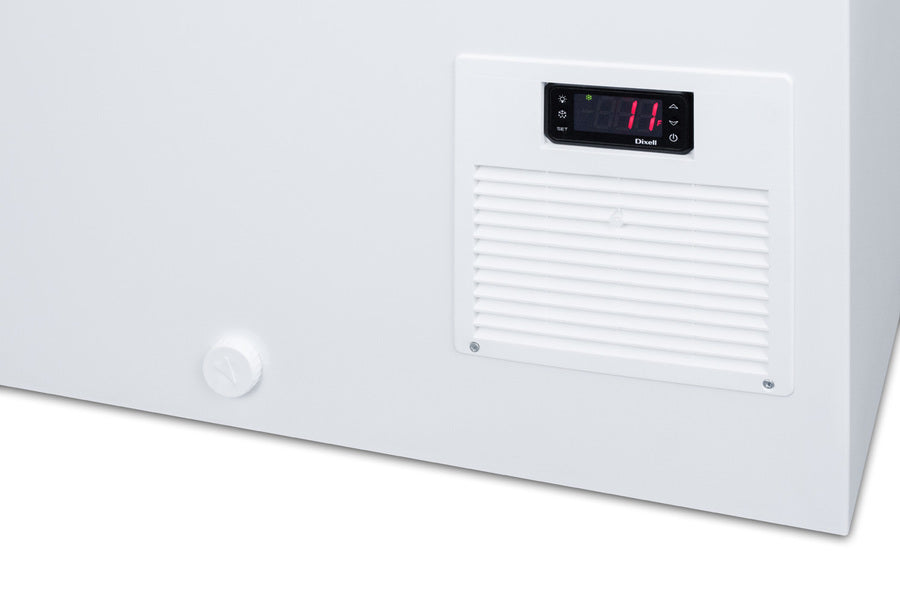

- Digital thermostat: Electronic controls for precise temperature management
- Wide temperature range: Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats
- Sneeze guard: Durable poly-carbonate sneeze guard is pre-installed

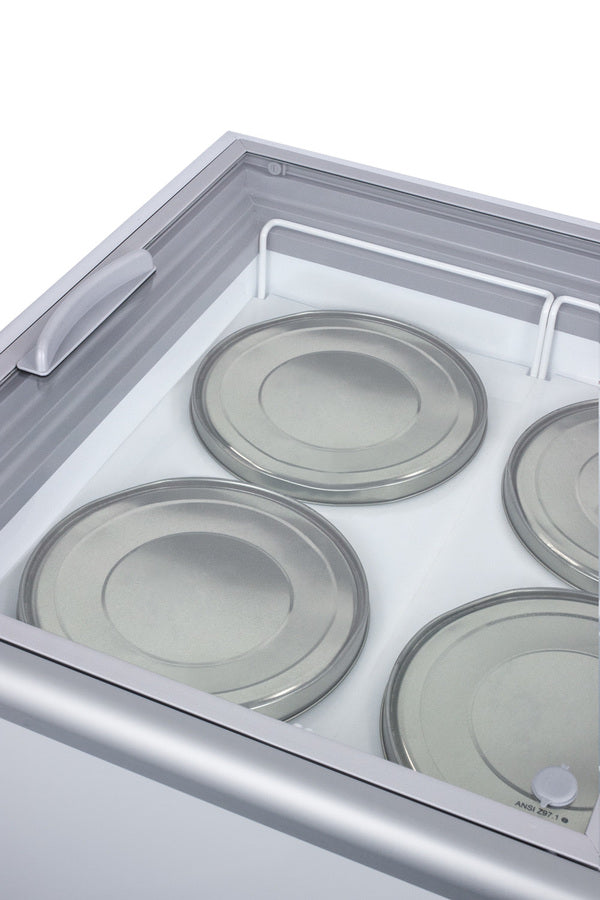

- Ice cream tub holders: Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
- Holds 18 standard 3 gallon tubs: Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets
- Strong insulation: 3" thick insulation helps to ensure items stay cold
- Casters: Heavy duty wheels for smooth mobility (ship unassembled)
- Sliding glass lid: Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

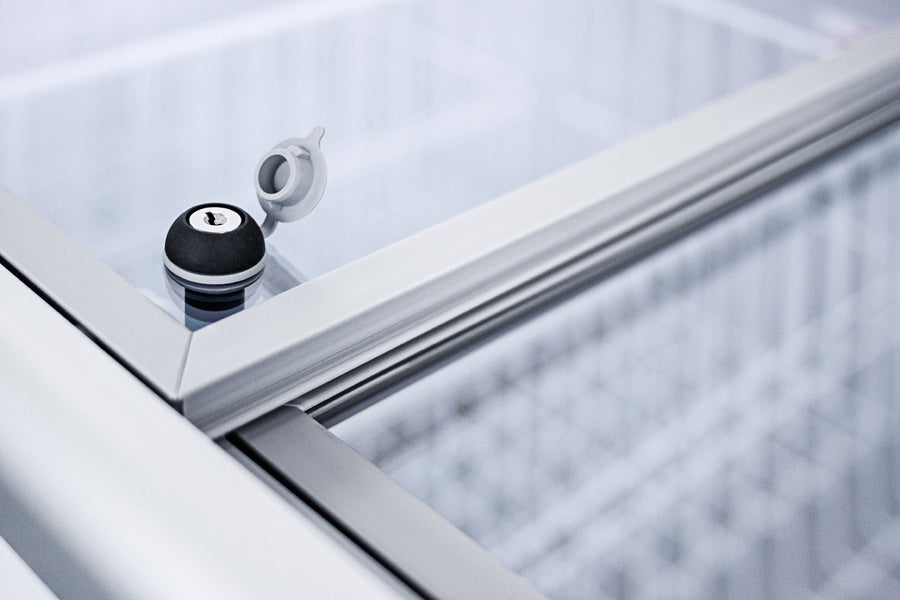

- Removable lock: A keyed lock is included for optional use
- Manual defrost: Static cooling system for improved temperature stability
- Fan-cooled compressor: Offers improved temperature performance throughout the interior
- Steel interior: Durable construction in a white finish for easy visibility
- Light: Sneeze guard light for added visibility
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 45.5" (116 cm)
- Width: 60.75" (154 cm)
- Depth: 27.25" (69 cm)
- Capacity: 17.8 cu.ft. (504 L)
- Defrost Type: Manual
- Door: Glass
- Cabinet: White
- US Electrical Safety: UL
- Canadian Electrical Safety: ULC
- Sanitation: UL-S
- Amps: 4.2
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 190.0 lbs. (86 kg)
- Shipping Weight: 200.0 lbs. (91 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101060187
Freezer
- Door Swing: Sliding
- Interior Height: 26.0" (66 cm)
- Interior Width: 54.5" (138 cm)
- Interior Depth: 21.0" (53 cm)
- Thermostat Type: Digital
- Refrigerant Type: R290a
- Refrigerant Amount: 3.17 oz.
- High Side PSI: 345.0
- Low Side PSI: 140.0
- Wheels: 4
- Compressor Step Height: 9.75" (25 cm)
- Compressor Step Width: 7.88" (20 cm)
- Compressor Step Depth: 21.0" (53 cm)
- Temperature Range: -13 to 23ºF
Available Upgrades
Exterior
- Extra key
- Corner Protectors
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
