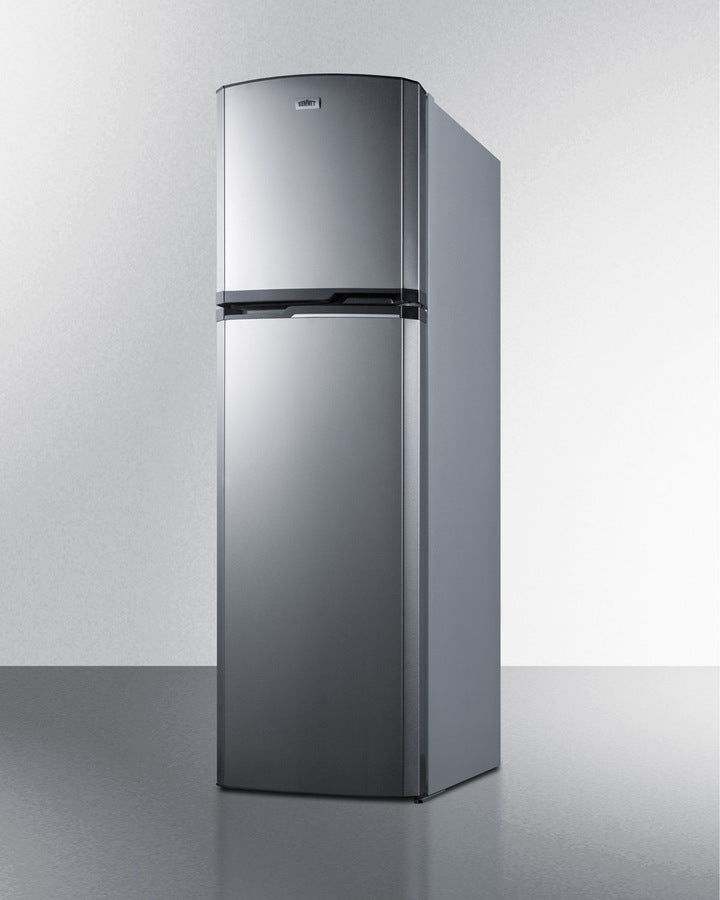

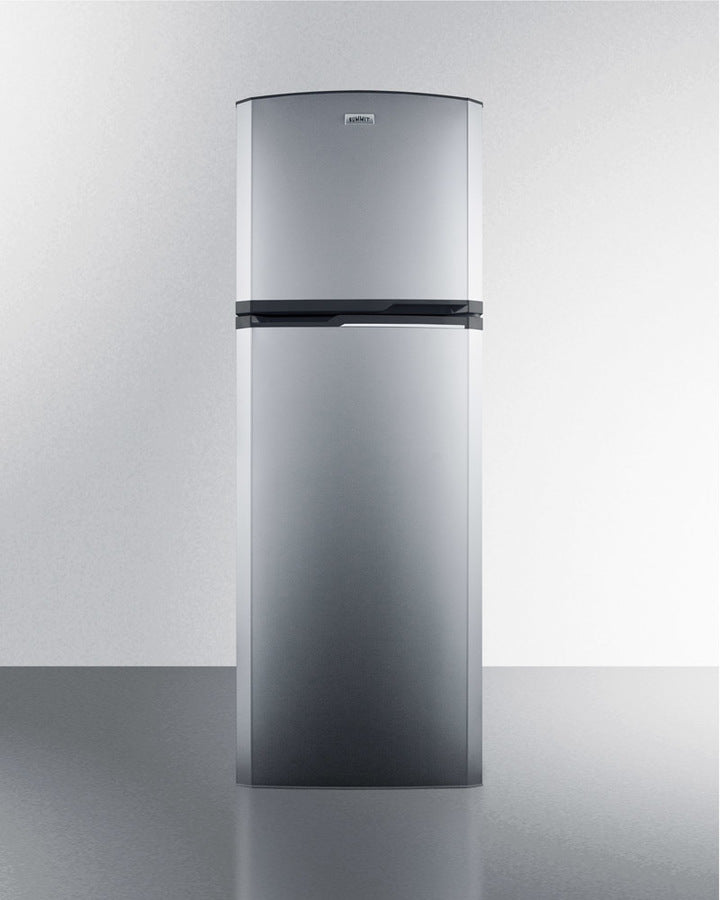

Summit 22" Wide Top Mount Refrigerator-Freezer With Icemaker - FF948SSIM
SUMMIT's thin-line collection of frost-free refrigerator-freezers brings quality and convenience to even the smallest kitchen space.

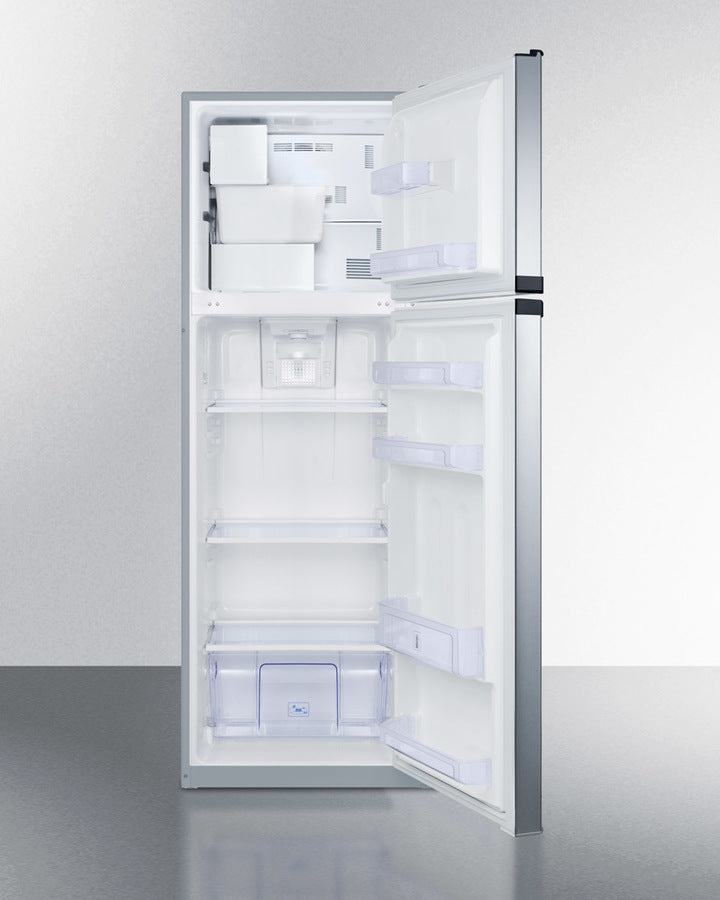

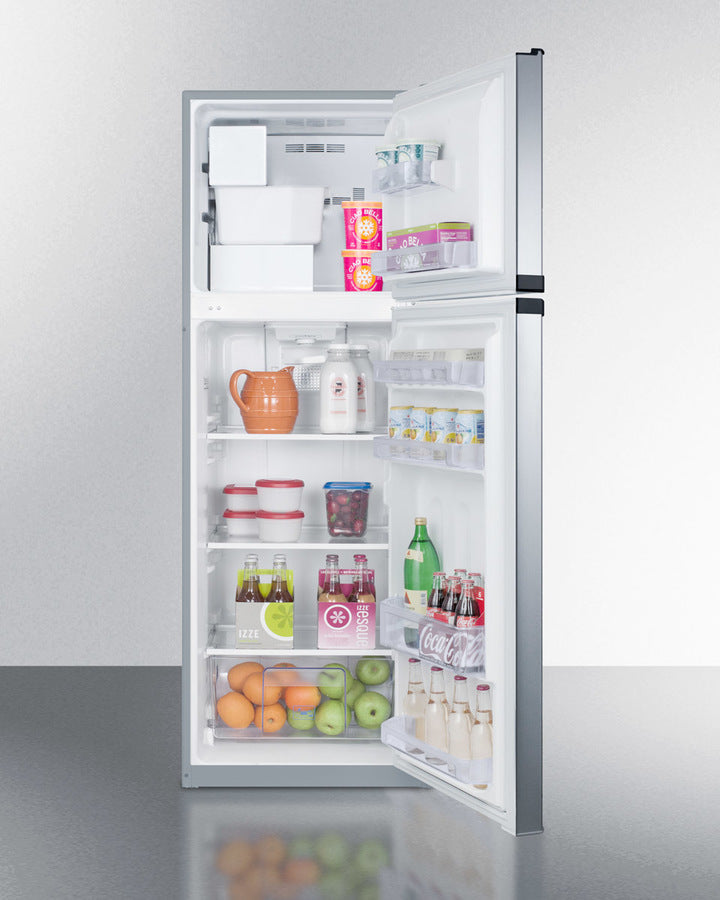

The FF948SSIM offers a full 8.8 cu.ft. capacity inside a slim fit, with a unique curved door design for added style. The fresh food section includes adjustable glass shelves for spill-proof storage and easy cleaning, with a large tilt-out crisper and four door racks to help keep your refrigerator organized. The large freezer section includes a removable wire shelf and two door racks for added convenience. A factory installed icemaker offers a steady supply of ice cubes.
![Summit 22" Wide Top Mount Refrigerator-Freezer With Icemaker](https://cdn.shopify.com/s/files/1/0020/6382/7008/products/summit-22-wide-top-mount-refrigerator-freezer-with-icemaker-ff948ssim-_4_480x480.jpg?v=1631091649)
Made in North America, the FF948SSIM includes reversible stainless steel doors and a platinum cabinet. For this unit in white, see the FF946WIM.
NOTE: Because of this unit's curved door style, the FF948SSIM requires an additional 1 3/4" of width to open the doors to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.
Features
- Thin-line design: Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
- Frost-free operation: No-frost convenience for reduced user maintenance
- Adjustable glass shelves: Spill-proof shelves made from solid safety glass offer convenient and flexible storage in the refrigerator section
- Factory installed icemaker: Produces a steady of supply of ice in the freezer section
- Door storage: Refrigerator door includes four racks ideal for storing condiments and tall bottles. Freezer door includes one full and one half shelf
- Clear crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer that tilts out for easy loading and unloading
- Reversible stainless steel doors: User-reversible door swing for added flexibility
- Interior light: Automatically illuminates when you open the refrigerator door
- Platinum cabinet: Professional style offers the look of stainless steel
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 64.75" (164 cm)
- Height to Hinge Cap: 65.75" (167 cm)
- Width: 22.0" (56 cm)
- Width with Door Open: 23.75" (60 cm)
- Depth: 26.0" (66 cm)
- Depth with door at 90°: 44.25" (112 cm)
- Capacity: 8.8 cu.ft. (249 L)
- Defrost Type: Frost-Free
- Door: Stainless Steel
- Cabinet: Platinum
- US Electrical Safety: UL
- Canadian Electrical Safety: ULC
- Energy Usage/Year: 400.0kWh/year
- Amps: 0.82
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 125.0 lbs. (57 kg)
- Shipping Weight: 130.0 lbs. (59 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101050881
Refrigerator-Freezer
- Door Swing: RHD
- Reversible: Yes
- Adjustable Shelves: Yes
- Crisper Qty: 1
- Crisper Finish: Transparent
- Crisper Cover: Glass
- Interior Light: Yes
- Refrigerator - Interior Height: 40.5" (103 cm)
- Refrigerator - Interior Width: 17.0" (43 cm)
- Refrigerator - Interior Depth: 17.0" (43 cm)
- Refrigerator - Capacity: 6.67 cu.ft
- Refrigerator - Shelf Type: Glass
- Refrigerator - Shelf Qty: 2
- Refrigerator - Full Door Shelves: 4
- Freezer - Interior Height: 16.0" (41 cm)
- Freezer - Interior Width: 16.25" (41 cm)
- Freezer - Interior Depth: 13.25" (34 cm)
- Freezer - Capacity: 2.1 cu.ft
- Freezer - Shelf Type: Wire
- Freezer - Shelf Qty: 1
- Freezer - Full Door Shelves: 1
- Freezer - Half Door Shelves: 1
- Thermostat Type: Dial
- Fan Type: Interior
- Refrigerant Type: R134a
- Refrigerant Amount: 3.53 oz.
- Level Legs: 2
- Compressor Step Height: 9.75" (25 cm)
- Compressor Step Width: 17.0" (43 cm)
- Compressor Step Depth: 4.0" (10 cm)
![Summit 22" Wide Top Mount Refrigerator-Freezer With Icemaker](https://cdn.shopify.com/s/files/1/0020/6382/7008/products/summit-22-wide-top-mount-refrigerator-freezer-with-icemaker-ff948ssim-_2_480x480.jpg?v=1631091649)
Available Upgrades
Lock
- LLF2: Combination lock
- LL: Side-mounted locks
Handle
- TB Set
- TBC Copper Towel Bar Handles
- CP Full-Length Copper Pipe Handles
Exterior
- LHD: Left hand door swing
Manufacturer Resources
- Brochure w/ Drawings
- Technical Drawing (.dwg)
- MSDS Information
- Use and Care (Icemaker)
- Use and Care
- Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
