Summit 24" Wide 3-Drawer All-Refrigerator with Towel Bar Handle - SP6DBSSTB7

Summit 24" Wide 3-Drawer All-Refrigerator with Towel Bar Handle - SP6DBSSTB7

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

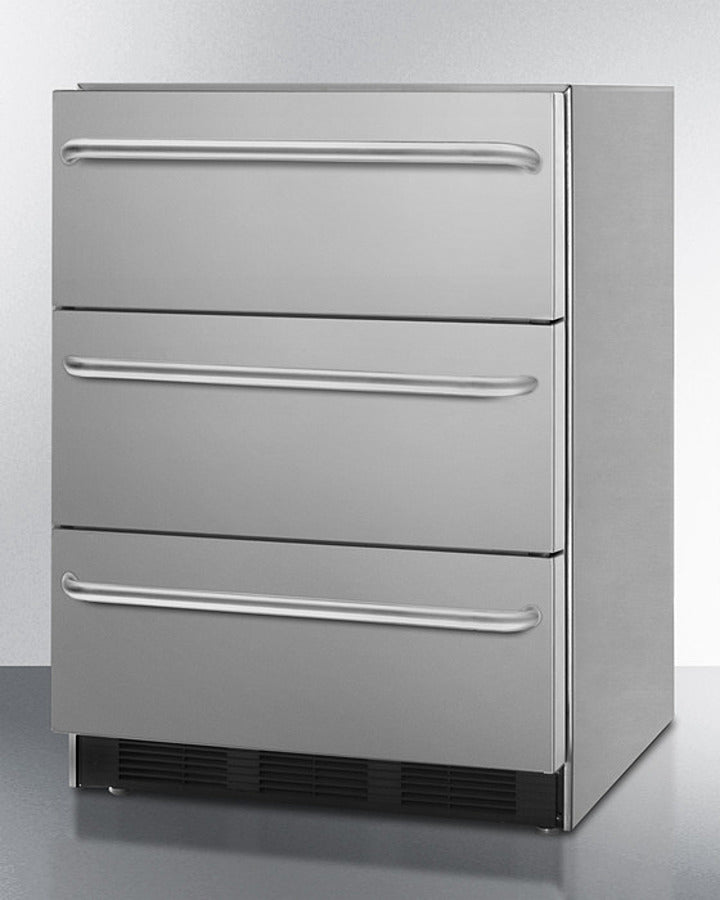

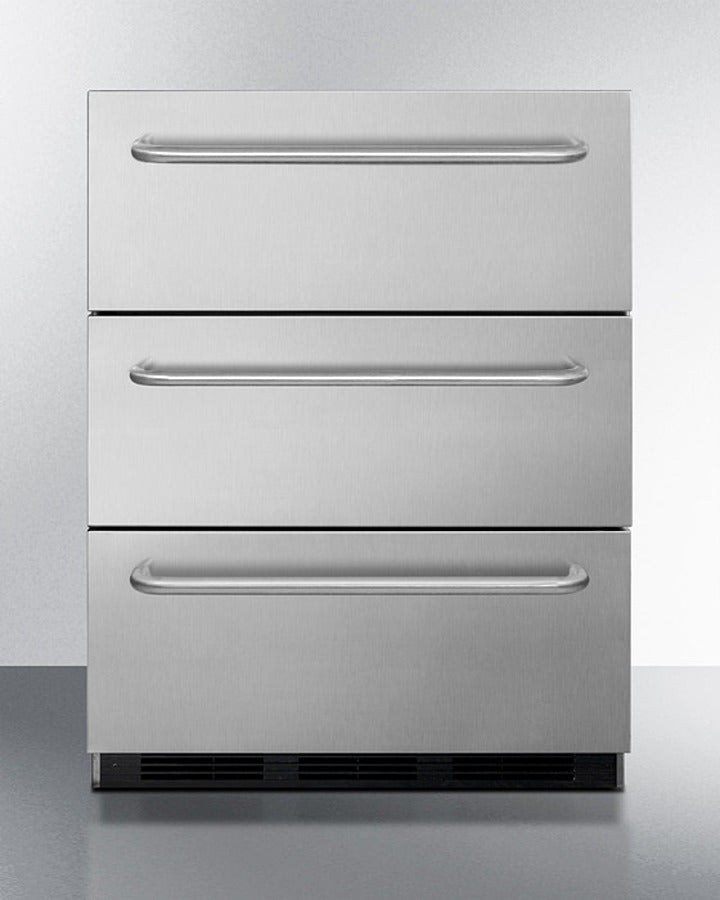

The SP6DBSSTB7 is a 24" wide three-drawer all-refrigerator that can be used built-in or freestanding. Three sliding drawers feature curved towel bar handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look.

Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in lower ADA compliant height, see the SP6DBSSTB7ADA.

Features

• Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
• Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
• Fully finished cabinet: Allows the refrigerator to be used freestanding
• Stainless steel construction: Enhance any room with durable luxury
• Slim under-counter dimensions: Less than 24 inches wide to fit tight spaces
• Height adjustable: Four large leveling legs let you adjust unit height for the best under-counter fit
• Three slide-out drawers: Easy gliding drawers offer more storage options
• Automatic defrost: Reduced maintenance with auto defrost system
• Professional towel bar handles: Curved stainless steel handles add function and elegance, providing more room for a comfortable grip
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 33.25" (84 cm)
• Width: 23.75" (60 cm)
• Depth: 23.58" (60 cm)
• Depth with Handle: 24.63" (63 cm)
• Depth with door at 90°: 40.5" (103 cm)
• Capacity: 3.1 cu.ft. (88 L)
• Defrost Type: Automatic
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 1.2
• Weight: 120.0 lbs. (54 kg)
• Shipping Weight: 125.0 lbs. (57 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101069548

Refrigerator Features

• Height Adjustable: 1
• Thermostat Type: Dial
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 0.64oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Level Legs Qty: 4
• Interior Drawers: Yes
• Interior Drawers Qty: 3

Drawer Dimensions

• Interior Height 1: 6.25" (16 cm)
• Interior Width 1: 18.63" (47 cm)
• Interior Depth 1: 11.5" (29 cm)
• Interior Height 2: 6.25" (16 cm)
• Interior Width 2: 18.63" (47 cm)
• Interior Depth 2: 16.0" (41 cm)
• Interior Height 3: 6.25" (16 cm)
• Interior Width 3: 17.25" (44 cm)
• Interior Depth 3: 16.0" (41 cm)

Dimensions

• Compressor Step Height: 7.0" (18 cm)
• Compressor Step Width: 18.63" (47 cm)
• Compressor Step Depth: 6.0" (15 cm)

Available Upgrades

Exterior

• HG: Hospital grade cord
• SSK
• Latch for door
• DT: Digital thermostat
• PH: Probe Hole
• Alarm/Thermometer
• Legs to raise unit height
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Interior

• FC: Internal Fan

Manufacturer Resources

• Brochure w/ Drawings
• Technical Drawing (.dwg)
• Use and Care

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
