description

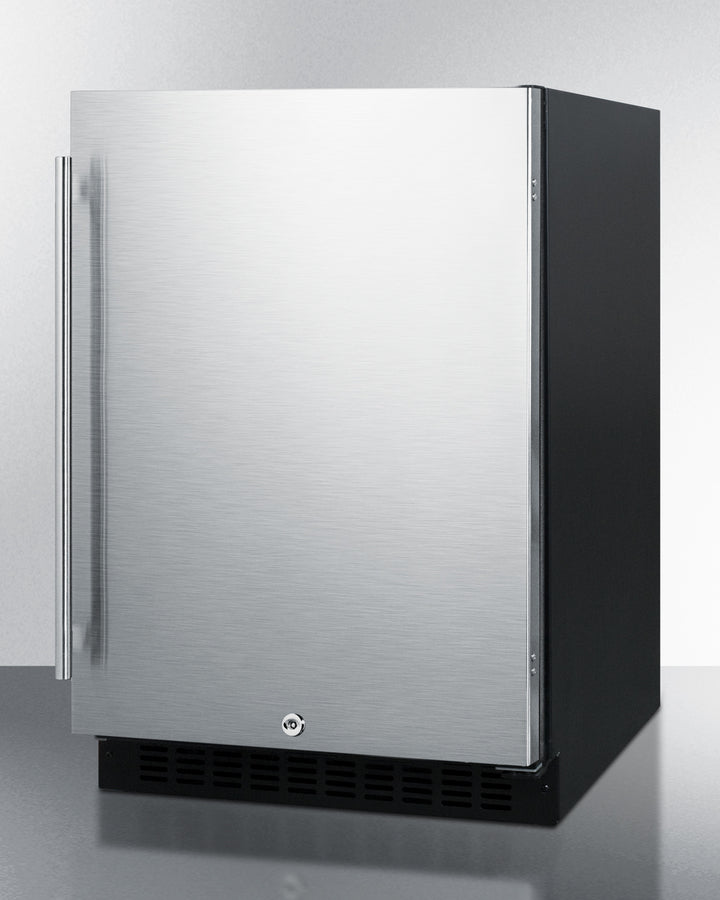

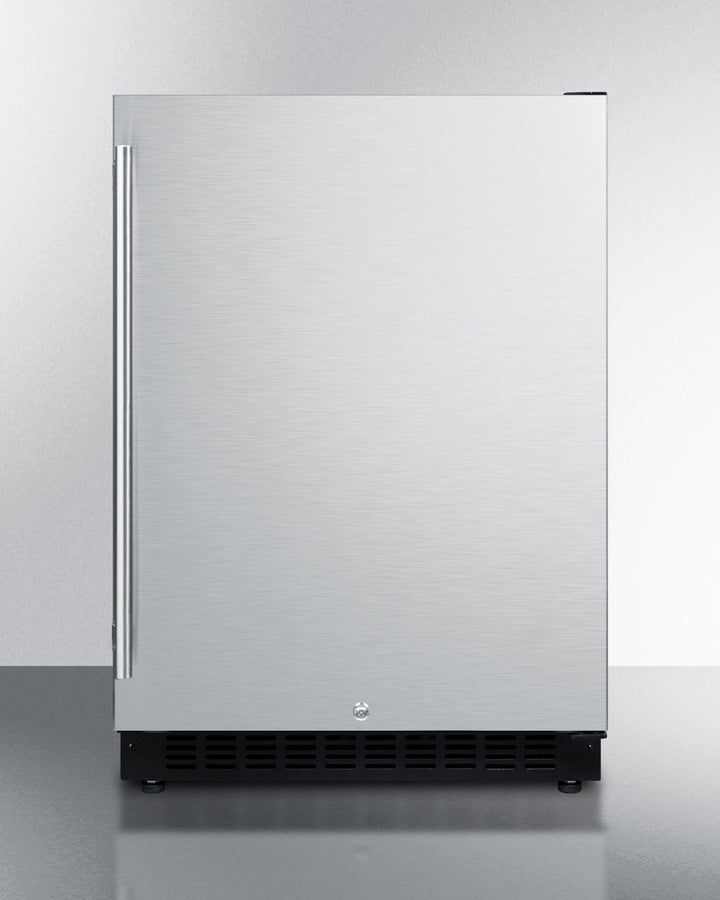

Summit 24" Wide Built-In All-Refrigerator ADA Compliant - AL54
SUMMIT's AL54 series features built-in under-counter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.
Sized with a convenient 24" footprint, the AL54 is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible stainless steel door includes a pro style handle and a factory installed lock for added safety. This unit has a flush back for easy cleaning and a right angle cord.
![Summit 24" Wide Built-In All-Refrigerator ADA Compliant](https://cdn.shopify.com/s/files/1/0020/6382/7008/products/summit-24-wide-built-in-all-refrigerator-ada-compliant-al54-_1_480x480.jpg?v=1628084682)

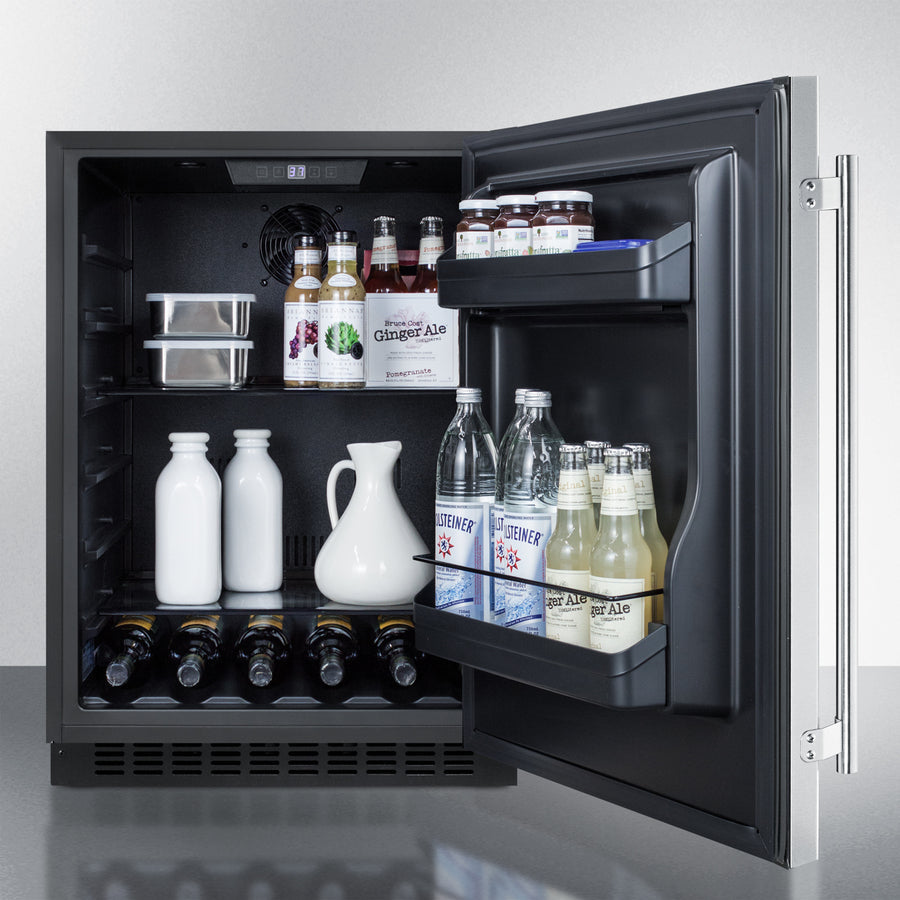

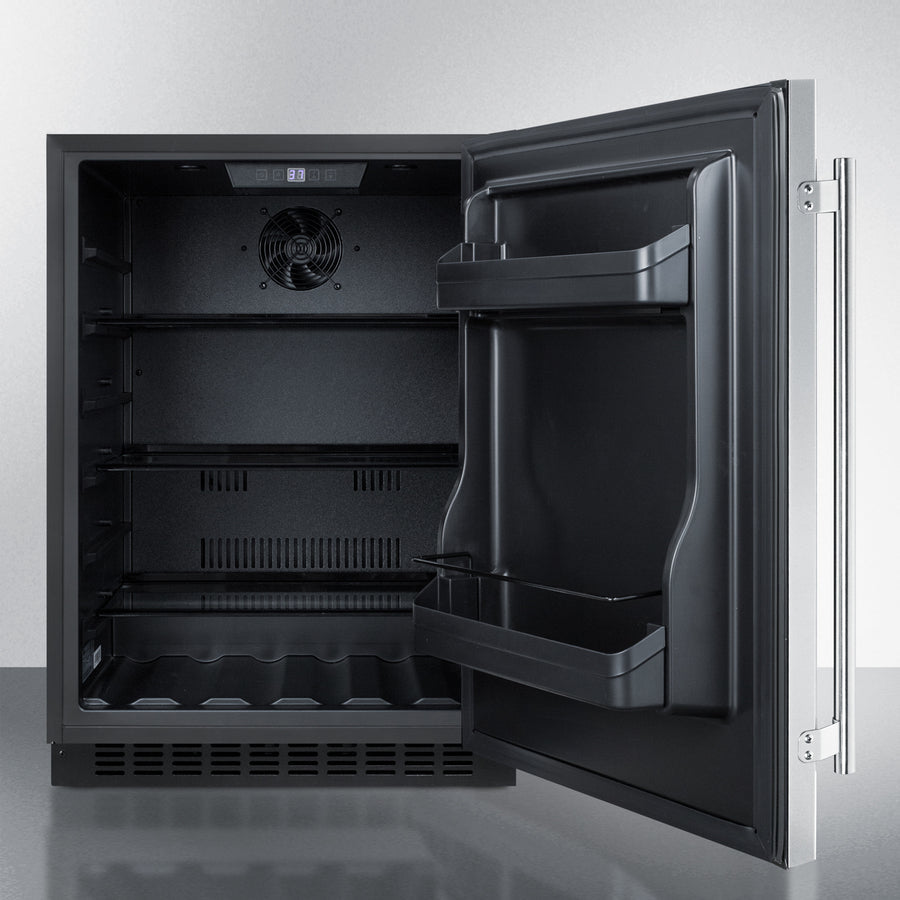

Inside, the AL54 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature.
This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The AL54 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available.
Features
- ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
- Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Stainless steel door: Durable construction with a professional look
- Factory installed lock: Keyed lock for a secure interior
- Professional handle: Includes a full-length pro handle in chrome
- Frost-free operation: No-frost operation for minimum user maintenance
- Digital thermostat: Electronic controls located inside the unit for precise temperature management
- Recessed LED light: Efficient and attractive presentation with LED lighting
- Adjustable glass shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Door storage: Two door racks offer convenient storage for condiments and bottles
- Bottle slots: Floor is specially slotted to store wine and other bottles safely in place
- Internal fan: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Reversible door: User-reversible door swing for added flexibility
- Open door alarm: Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm: High temperature alarm sounds if the unit's interior goes out of the recommended range
- Sabbath mode setting: Optional setting lets you disable the lighting and alarm for up to 48 hours
- Temperature Memory Function: Unit will retain its last settings when power is restored in the event of power loss
- Sealed back: Space-saving design that offers easier cleanability
- Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
- Fully finished black cabinet: Allows the unit to be used freestanding
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Width: 23.63" (60 cm)
- Depth: 22.63" (57 cm)
- Depth with Handle: 24.63" (63 cm)
- Depth with door at 90°: 45.0" (114 cm)
- Capacity: 4.8 cu.ft. (136 L)
- Defrost Type: Frost-Free
- Door: Stainless Steel
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Energy Usage/Year: 250.0kWh/year
- Amps: 1.0
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 95.0 lbs. (43 kg)
- Shipping Weight: 98.0 lbs. (44 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101052267
Refrigerator Features
- Sabbath Mode: Yes
- Door Swing: RHD
- Reversible: Yes
- Shelf Type: Glass
- Shelf Qty: 3
- Full Door Shelf Qty: 2
- Adjustable Shelves: Yes
- Thermostat Type: Digital
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.99oz.
- High Side PSI: 270.0
- Low Side PSI: 105.0
- Level Legs Qty: 4
- Interior Light: Yes
- Temperature Range: 36 to 43ºF
Dimensions
- Interior Height: 25.0" (64 cm)
- Interior Width: 20.0" (51 cm)
- Interior Depth: 17.5" (44 cm)
- Compressor Step Height: 3.25" (8 cm)
- Compressor Step Width: 20.0" (51 cm)
- Compressor Step Depth: 5.25" (13 cm)
![Summit 24" Wide Built-In All-Refrigerator ADA Compliant](https://cdn.shopify.com/s/files/1/0020/6382/7008/products/summit-24-wide-built-in-all-refrigerator-ada-compliant-al54-_2_480x480.jpg?v=1628084682)
Available Upgrades
Exterior
- Extra key
- LHD: Left hand door swing
- Latch for door
Handle
- TBC Copper Towel Bar Handle
- CP Full-Length Copper Pipe Handle
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
