Summit 24" Wide Built-In All-Refrigerator ADA Compliant - FF61WBIIFADA
SUMMIT offers the industry’s largest selection of ADA compliant built-in under-counter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. The FF61BIADA Series includes fully featured all-refrigerators for built-in or freestanding use in residential settings.

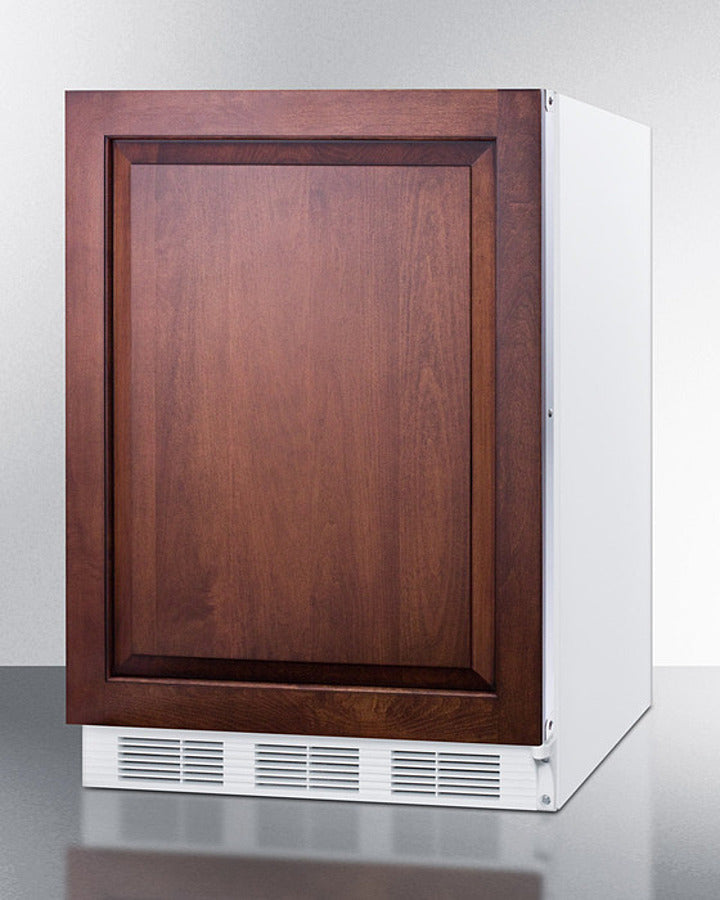

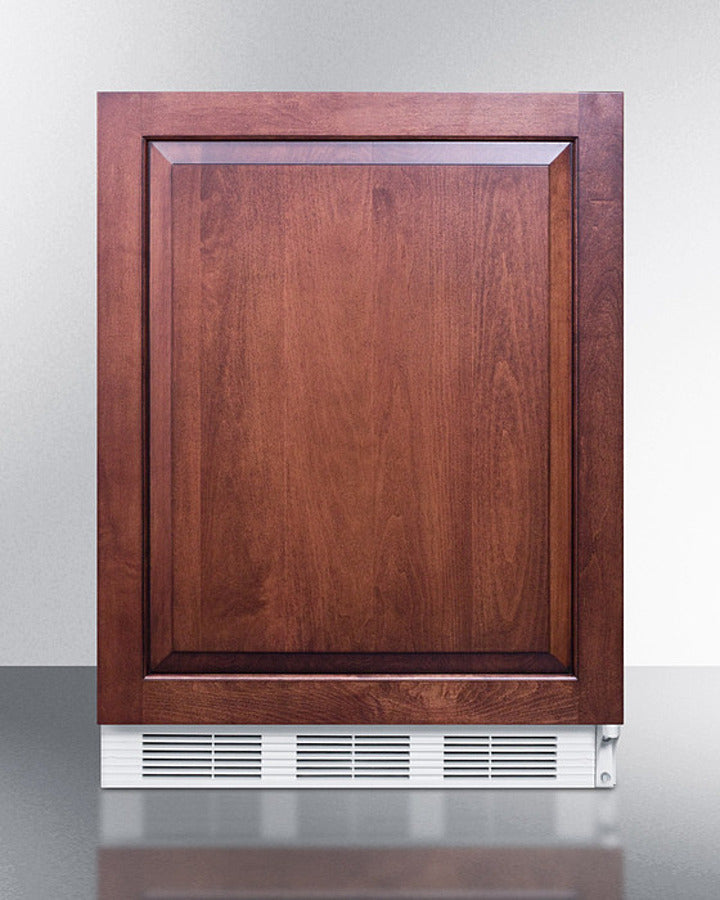

Sized with a 24” footprint and 32” height, the front-breathing FF61WBIIFADA all-refrigerator can be built-in under lower ADA compliant counters or used freestanding. The door includes an integrated stainless steel frame that accepts full custom panels (sized 23 5/16" W x 28 1/4" H and at least 3/4" thick) to create a customized look that can seamlessly blend with other kitchen cabinetry. This model has a white cabinet. Customers provide their own handle.

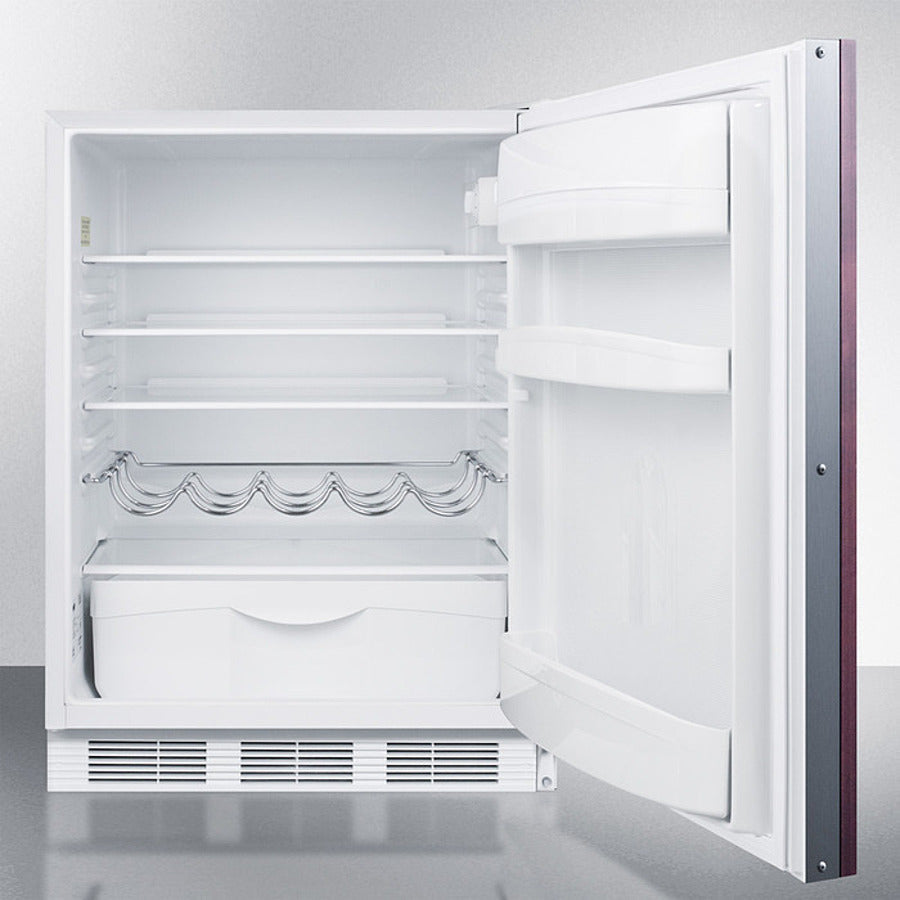

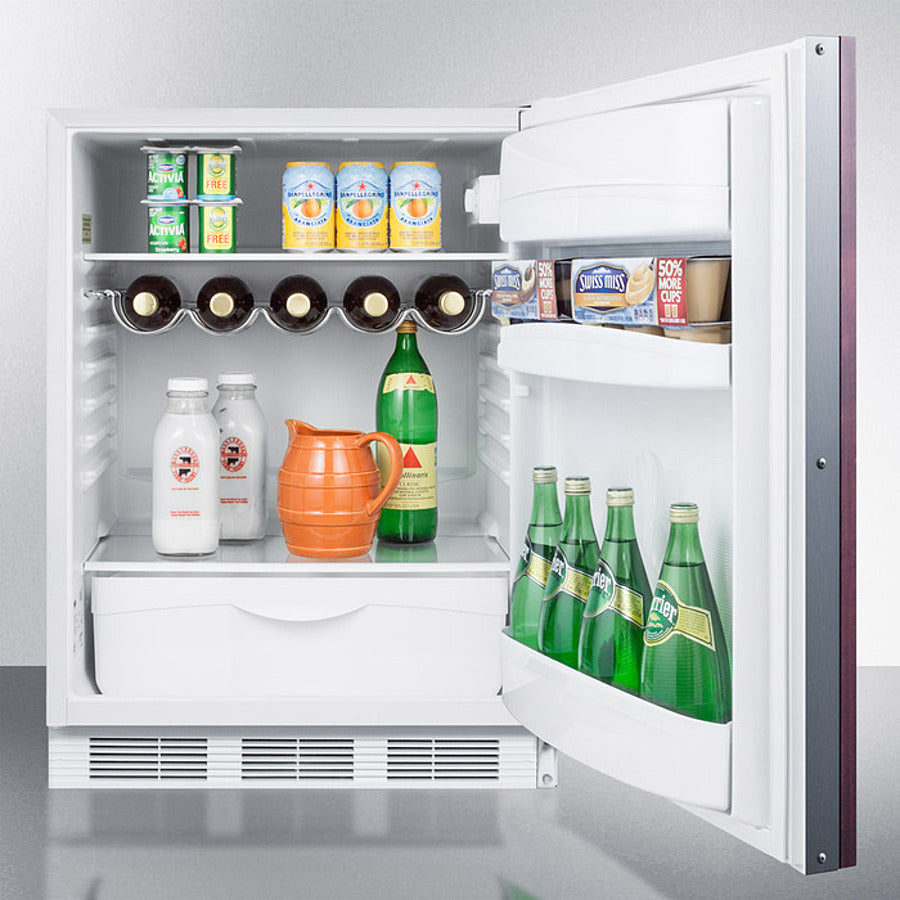

Inside, the FF61WBIIFADA utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light.
Designed and constructed in Europe, the FF61WBIIFADA brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For this unit in a black cabinet finish, see the FF63BKBIIFADA.
Features
- ADA compliant: 32" height to fit under lower ADA compliant counters
- Slim under-counter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Panel-ready door: Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Automatic defrost: Reduced maintenance with auto defrost system
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Adjustable glass shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
- Interior light: Automatically illuminates when you open the door
- Adjustable thermostat: Dial thermostat located inside for easy temperature management
- Fully finished white cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.25" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.0" (58 cm)
- Depth with door at 90°: 45.38" (115 cm)
- Capacity: 5.5 cu.ft. (156 L)
- Defrost Type: Automatic
- Door: Panel-Ready
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Energy Usage/Year: 307.0kWh/year
- Amps: 1.4
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 100.0 lbs. (45 kg)
- Shipping Weight: 105.0 lbs. (48 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101070032
Refrigerator Features
- Door Swing: RHD
- Reversible: Factory Reversible
- Crisper Qty: 1
- Crisper Finish: Opaque
- Crisper Cover: Glass
- Shelf Type: Glass
- Shelf Qty: 3
- Full Door Shelf Qty: 3
- Adjustable Shelves: Yes
- Wine Bottle Shelves: Yes
- Thermostat Type: Dial
- Fan Type: Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.64oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Interior Light: Yes
Dimensions
- Interior Height: 26.25" (67 cm)
- Interior Width: 21.0" (53 cm)
- Interior Depth: 18.0" (46 cm)
- Compressor Step Height: 5.5" (14 cm)
- Compressor Step Width: 21.0" (53 cm)
- Compressor Step Depth: 6.0" (15 cm)
Available Upgrades
Exterior
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
- TT: Installed thermometer
- PH: Probe Hole
- DT: Digital thermostat
- Alarm
- ODA: Open door alarm
- LHD: Left hand door swing
- SSK
- HG: Hospital grade cord
Interior
- FCGP: Internal fan with gel packs
- FC: Internal Fan
Manufacturer Resources
- Brochure
- Use and Care (Integrated Frame)
- Use and Care
- Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
