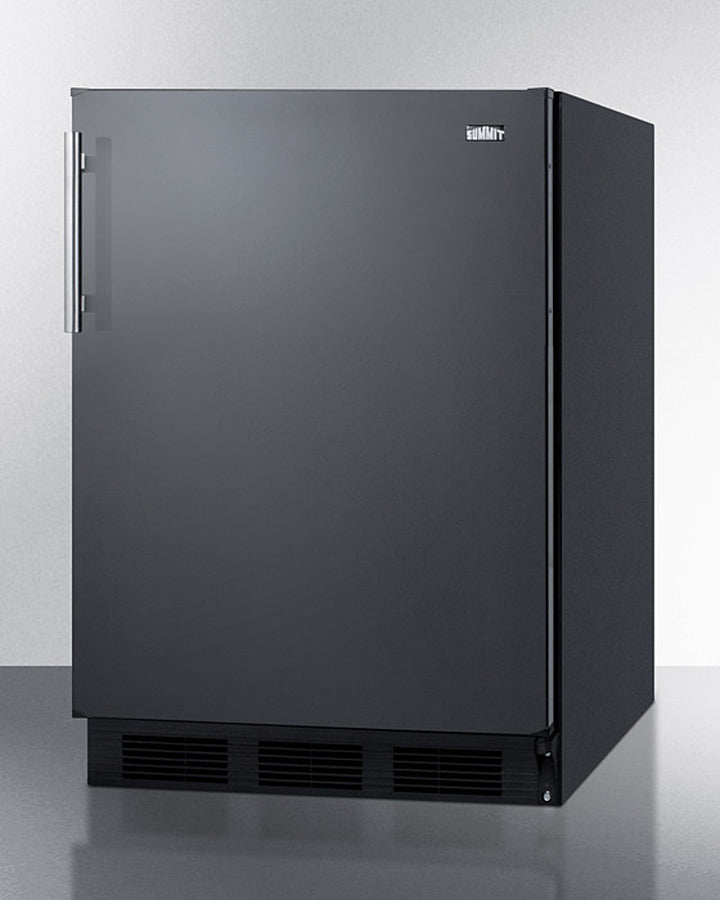

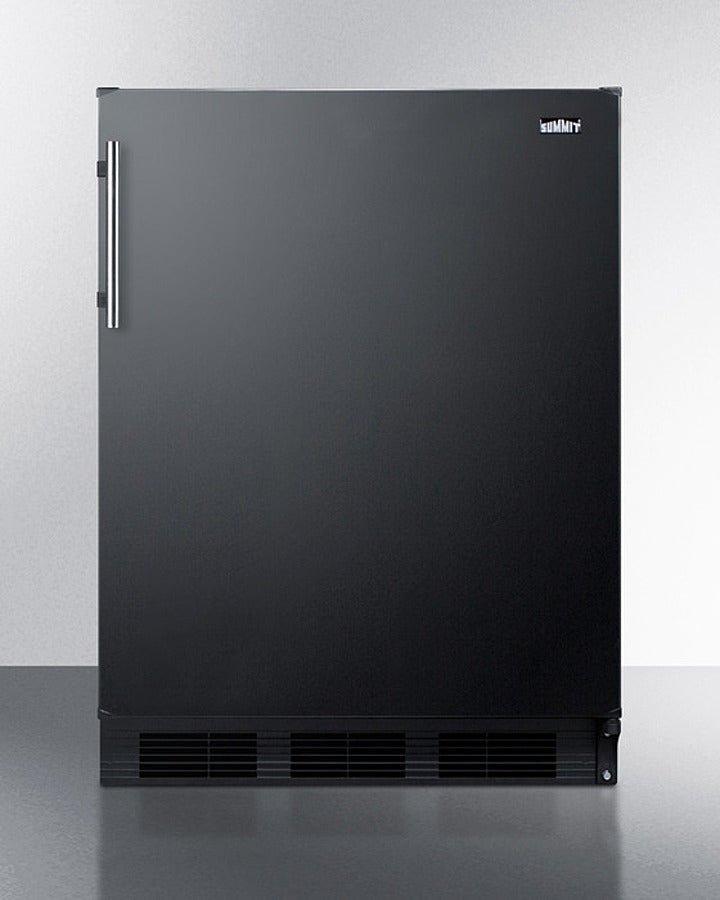

Summit 24" Wide Built-In Refrigerator-Freezer ADA Compliant - CT663BKBIADA
SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The CT663BBIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters.
Sized with a 24” footprint, the CT663BKBIADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes in a black exterior finish with a user-reversible door. A stainless steel handle is included.
Inside, the CT663BKBIADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.

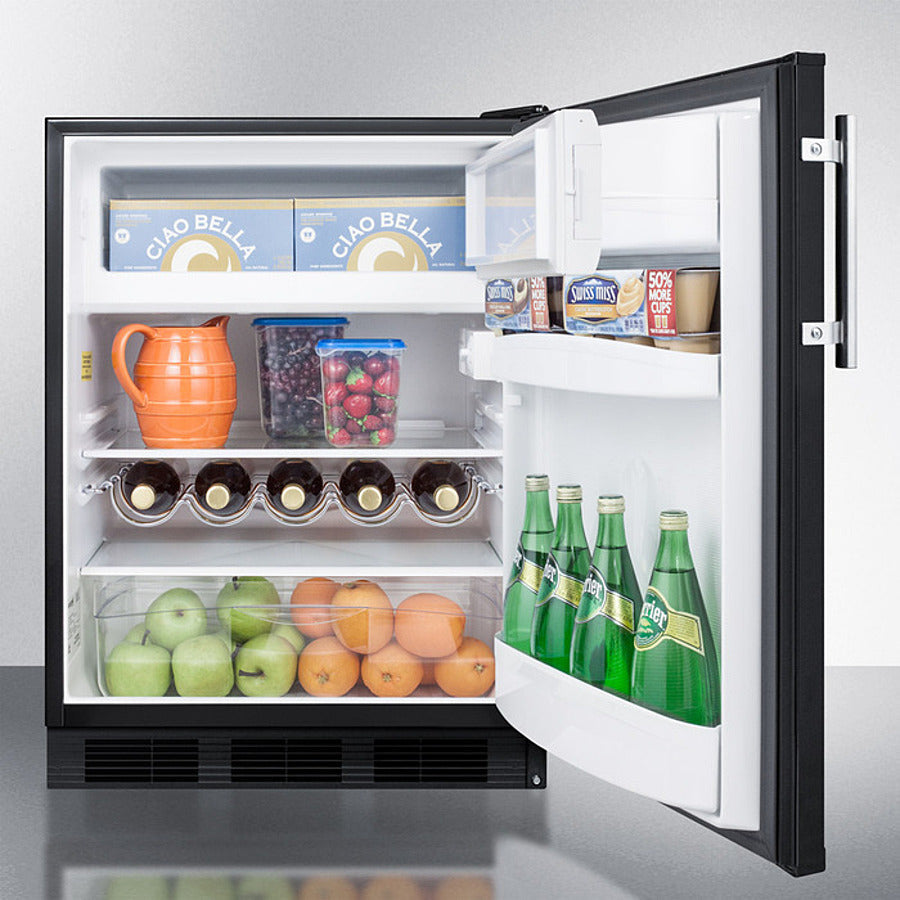

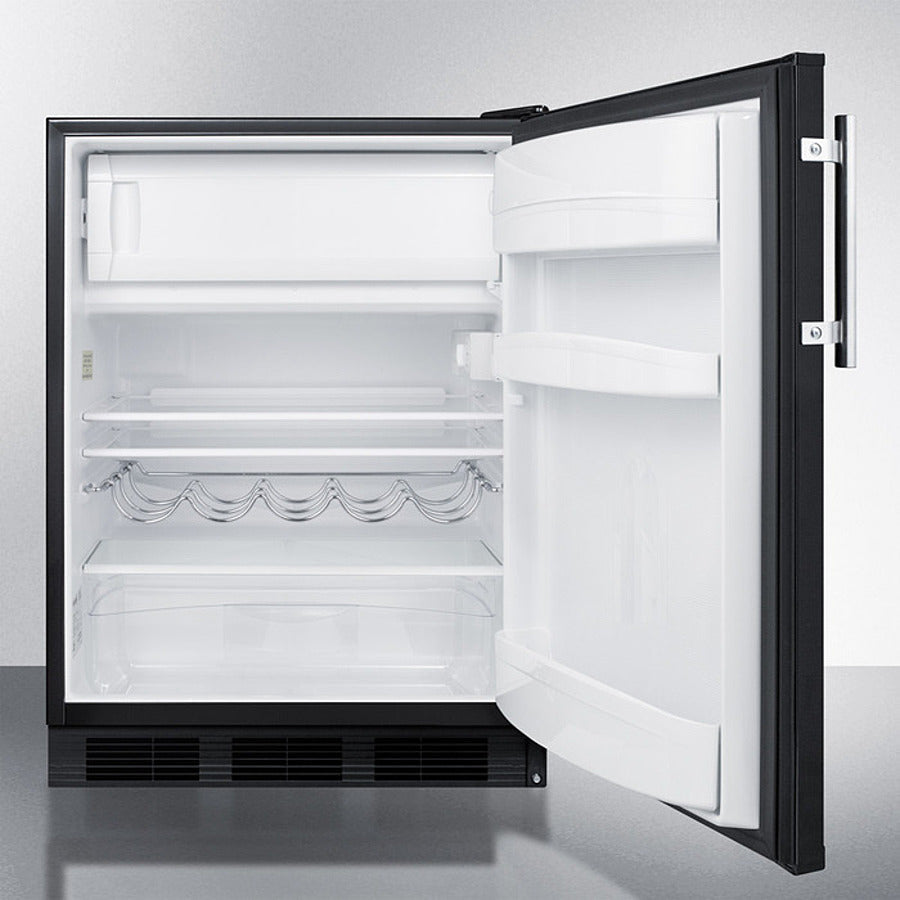

The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.
With its ideal dimensions and user-friendly features, the CT663BKBIADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter.
Features
- ADA Compliant: 32" height to fit under lower ADA compliant counters
- Slim under-counter dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Adjustable glass shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Door shelves: Store tall bottles and condiments right on the door for convenient access
- Crisper drawer: Get the longest life and best taste out of produce by storing greens in lower slide drawer
- Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
- Interior light: Automatically illuminates when the door is opened
- Pro style handle: Stainless steel handle adds an attractive touch
- Reversible door: User-reversible door swing for added flexibility
- Fully finished black cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
- Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 32.0" (81 cm)
- Height to Hinge Cap: 32.38" (82 cm)
- Width: 23.63" (60 cm)
- Depth: 23.5" (60 cm)
- Depth with Handle: 24.63" (63 cm)
- Depth with door at 90°: 45.38" (115 cm)
- Capacity: 5.1 cu.ft. (144 L)
- Defrost Type: Cycle
- Door: Black
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Energy Usage/Year: 365.0kWh/year
- Amps: 1.4
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 100.0 lbs. (45 kg)
- Shipping Weight: 105.0 lbs. (48 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101068510
Refrigerator-Freezer
- Door Swing: RHD
- Reversible: Yes
- Adjustable Shelves: Yes
- Crisper Qty: 1
- Crisper Finish: Transparent
- Crisper Cover: Glass
- Wine Bottle Shelving: Yes
- Interior Light: Yes
- Refrigerator - Interior Height: 18.0" (46 cm)
- Refrigerator - Interior Width: 21.0" (53 cm)
- Refrigerator - Interior Depth: 18.0" (46 cm)
- Refrigerator - Capacity: 4.5 cu.ft
- Refrigerator - Shelf Type: Glass
- Refrigerator - Shelf Qty: 2
- Refrigerator - Full Door Shelves: 3
- Freezer - Interior Height: 5.25" (13 cm)
- Freezer - Interior Width: 19.0" (48 cm)
- Freezer - Interior Depth: 11.5" (29 cm)
- Freezer - Capacity: 0.6 cu.ft
- Thermostat Type: Dial
- Fan Type: Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.92 oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Compressor Step Height: 5.5" (14 cm)
- Compressor Step Width: 21.0" (53 cm)
- Compressor Step Depth: 6.0" (15 cm)
Available Upgrades
Exterior
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
- TT: Installed thermometer
- PH: Probe Hole
- Alarm
- SS Hinges
- SCD: Self-closing door
- ODA: Open door alarm
- LHD: Left hand door swing
- Latch for door
- SSK
- HG: Hospital grade cord
Lock
- KEYPAD
- AC Keypad
Interior
- FCGP: Internal fan with gel packs
- FC: Internal Fan
Handle
- TBC Copper Towel Bar Handle
- CP Full-Length Copper Pipe Handle
Door
- STO: Step-To-Open Door Pedal
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
