description
Summit 24" Wide Wine Cellar - SWC1966CSS
SUMMIT SWC1966CSS is a full-sized dual zone wine cellar designed for optimum wine storage with user-friendly convenience.

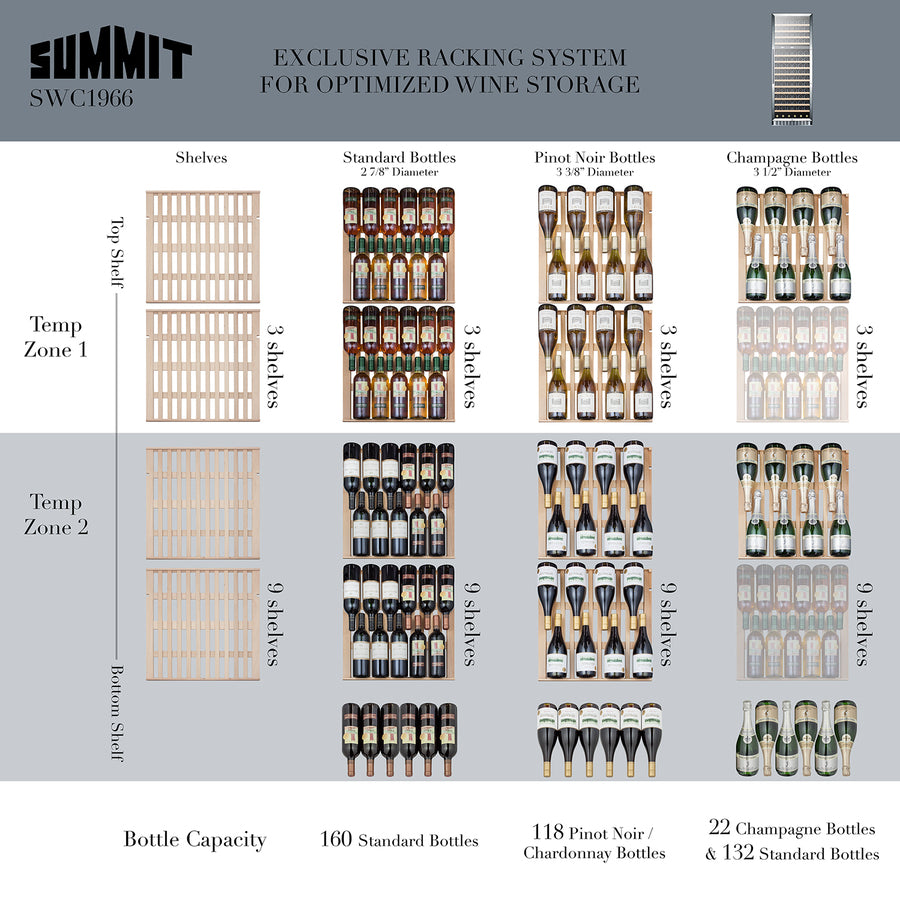

Sized at just under 24" wide and 27" deep, the SWC1966CSS can store up to 160 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 118 larger Burgundy style bottles (often used for Chardonnay or Pinot Noir) or a combination of 22 champagne bottles and 132 Bordeaux style. Two digital thermostats let you manage the temperature zones with ease and include an LED temperature display that can be shown in Celsius or Fahrenheit.
The larger lower compartment is best suited for red wines stored between 55º and 72ºF, while the upper zone is designed for white wine and champagne stored between 41º and 55ºF. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.
The SWC1966CSS features a stainless steel wrapped cabinet cabinet and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information.
With its ideal size and handy features, the SWC1966CSS is an elegant yet affordable wine cellar for full storage needs.
Features
- Large capacity: Interior can hold up to 160 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 118. For champagne, the interior can hold 22 bottles (plus an additional 132 of the standard Bordeaux style)

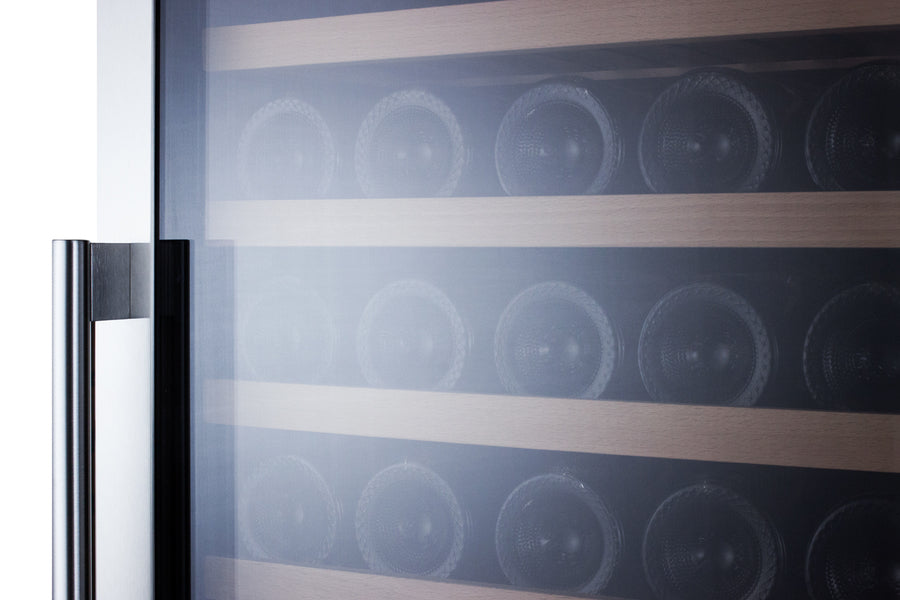

- Double pane tempered glass door: Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
- Two temperature zones: Lower zone is ideal for storing red wine (temperature range: 55ºF to 72ºF) while the upper zone accommodates white and sparkling wine stored between 41ºF and 55ºF
- Stainless steel wrapped cabinet: Exterior features 304 grade stainless steel for true luxury built to last
- Digital thermostats: Set and adjust two temperature zones separately with easy-to-use digital controls with an LED display in Celsius or Fahrenheit
- LED lighting: Recessed lighting offers an elegant, efficient view of your collection

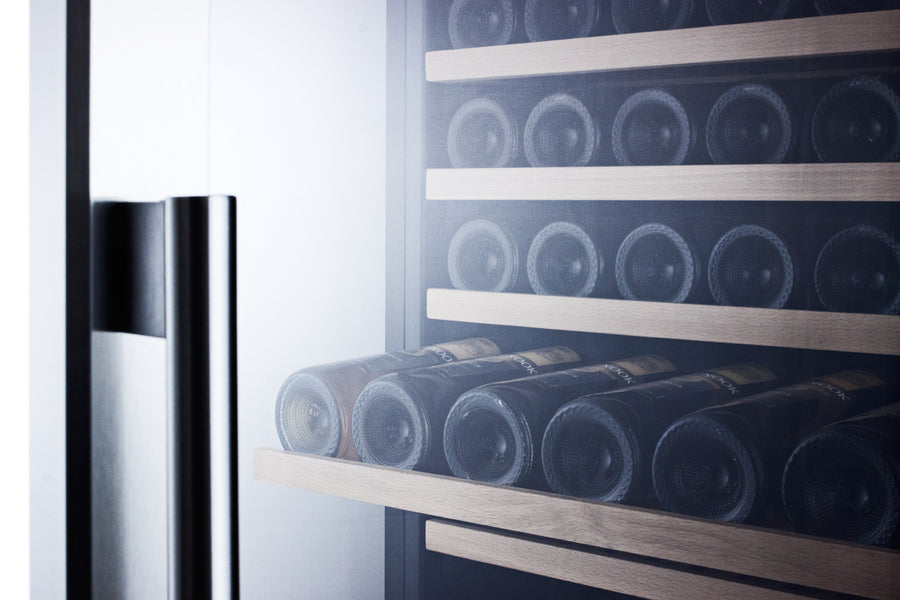

- Slide-out wooden shelves: 14 wooden shelves offer proper storage
- Factory installed lock: Keyed lock for trusted security
- Reversible door: User-reversible door swing allows for more flexibility in placing the unit
- Professional handle: Stainless steel handle completes the professional look
- Automatic defrost: Reduced user maintenance with auto defrost operation
- Modified built-in use: Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation
- High temperature alarm: Audible alarm sounds if the storage temperature rises out of recommended range
- Open door alarm: Alarm sounds if the door is left open for more than 60 seconds
- Temperature Memory Function: Unit will retain its last settings when power is restored in the event of power loss
- Sabbath Mode: Optional setting lets you disable the lighting and alarm for up to 48 hours
- Stainless steel kickplate: Sleek look with added protection
- Fully finished cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally safe operation with no ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 69.75" (177 cm)
- Width: 23.63" (60 cm)
- Depth: 26.63" (68 cm)
- Depth with Handle: 27.75" (70 cm)
- Depth with door at 90°: 48.75" (124 cm)
- Capacity: 15.9 cu.ft. (450 L)
- Bottles: 160 bottles
- Defrost Type: Automatic
- Door: Glass
- Cabinet Stainless: Steel
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 1.7
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 195.0 lbs. (88 kg)
- Shipping Weight: 202.0 lbs. (92 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101059242
Wine Cellar
- Number of Zones: 2
- Door Swing: RHD
- Reversible: Yes
- Shelf Type: Wood
- Shelf Qty1: 14
- Thermostat Type: Digital
- Interior Light: Yes
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.91 oz.
- High Side PSI: 270.0
- Low Side PSI: 105.0
- Interior Height 1: 29.5" (75 cm)
- Interior Width 1: 19.75" (50 cm)
- Interior Depth 1: 21.0" (53 cm)
- Compressor Step Height: 3.75" (10 cm)
- Compressor Step Width: 19.75" (50 cm)
- Compressor Step Depth:5.5" (14 cm)
- Temperature Range: 41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
- Interior Height 2: 31.0" (79 cm)
- Interior Width 2: 19.75" (50 cm)
- Interior Depth 2: 21.0" (53 cm)
Available Upgrades
Door
- T1SF Door Tint
- T4F Door Tint
- T3F Door Tint
- T2F Door Tint
Exterior
- Extra key
- LHD - Left hand door swing
- Latch - Factory-installed door latch requires manual release to open unit
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
