description

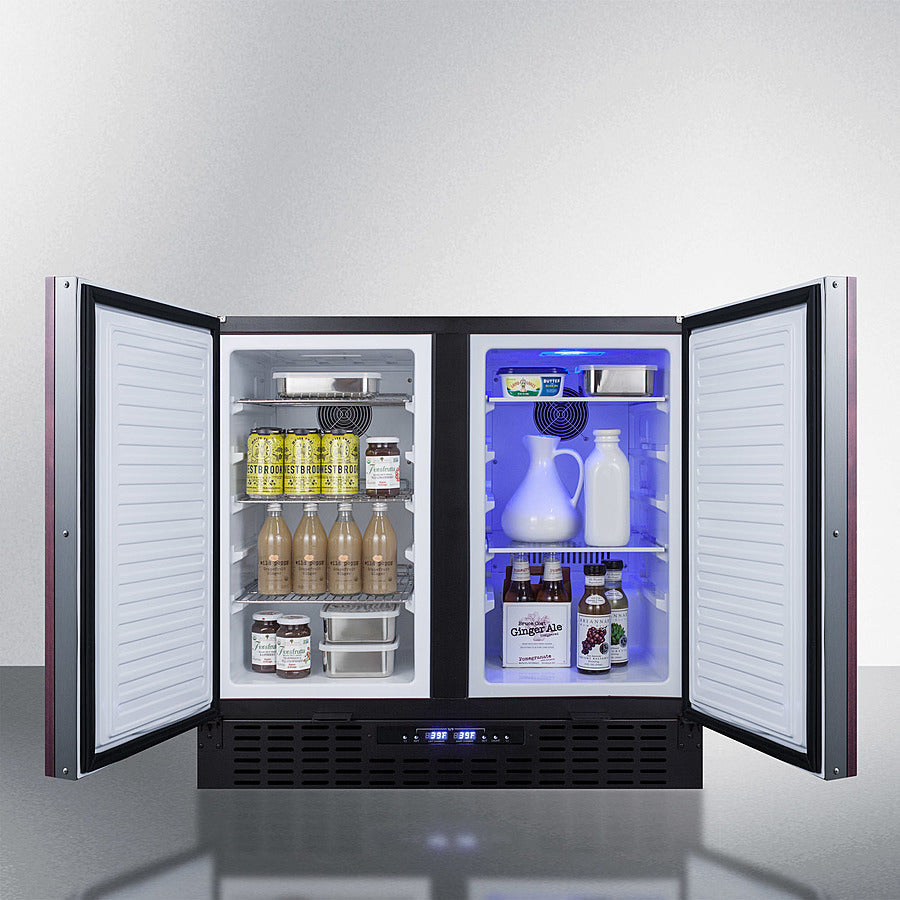

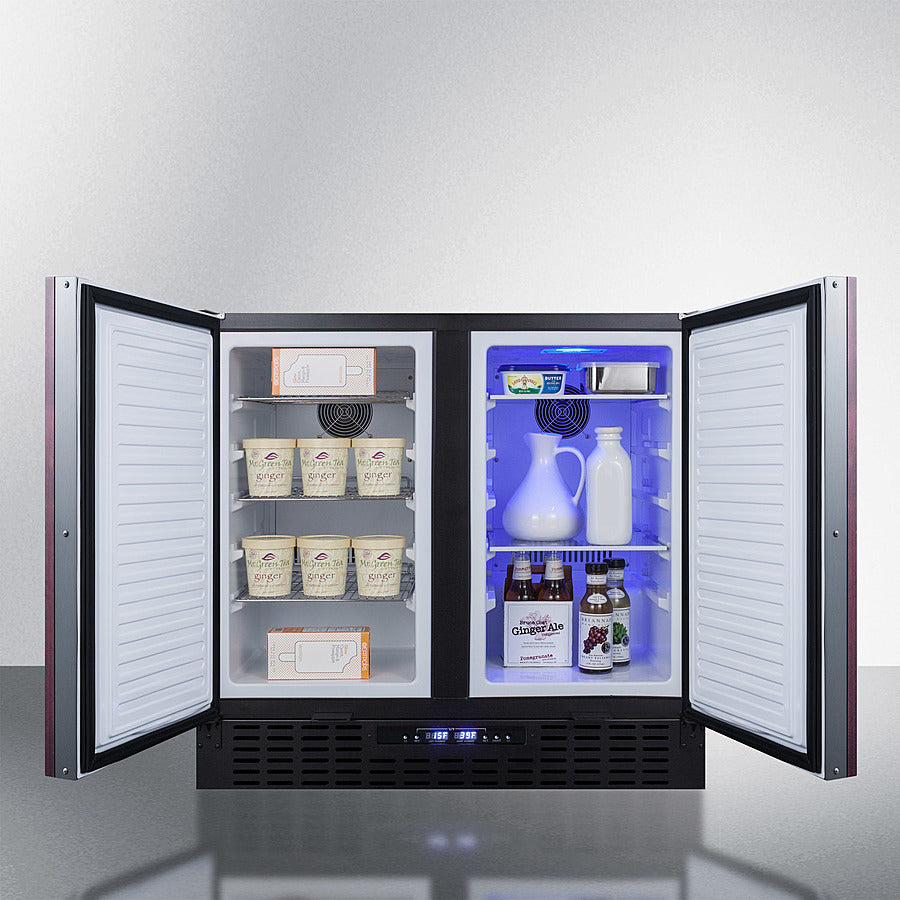

Summit 36" Wide Built-In Refrigerator-Freezer with Integrated Door Frame - FFRF36IF
SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration.
The FFRF36IF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation.
![Summit 36" Wide Built-In Refrigerator-Freezer with Integrated Door Frame](https://cdn.shopify.com/s/files/1/0020/6382/7008/products/summit-36-wide-built-in-refrigerator-freezer-with-integrated-door-frame-ffrf36if-_5_480x480.jpg?v=1631697648)

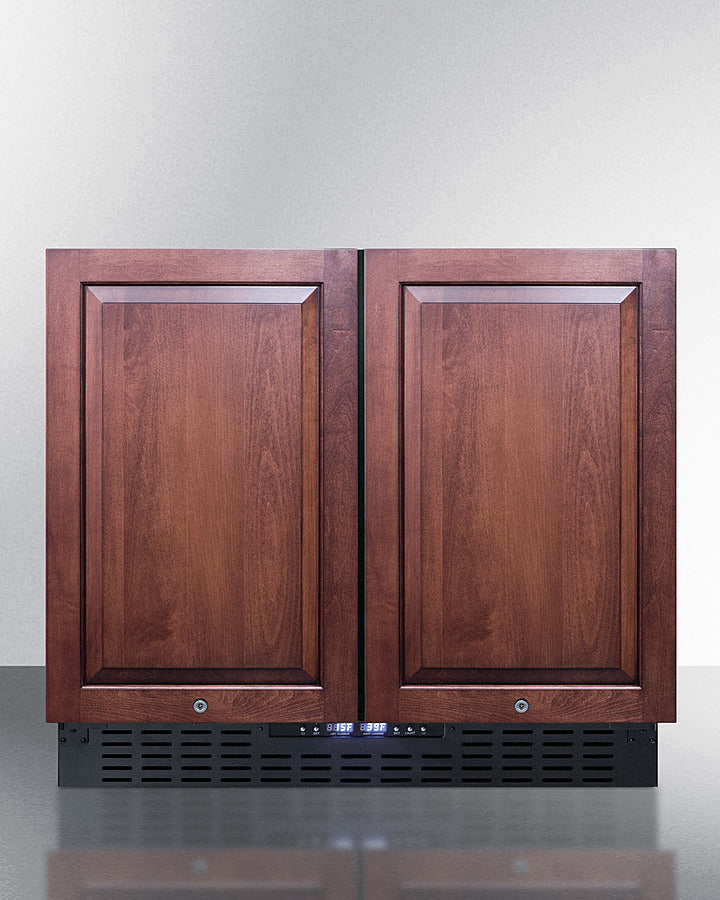

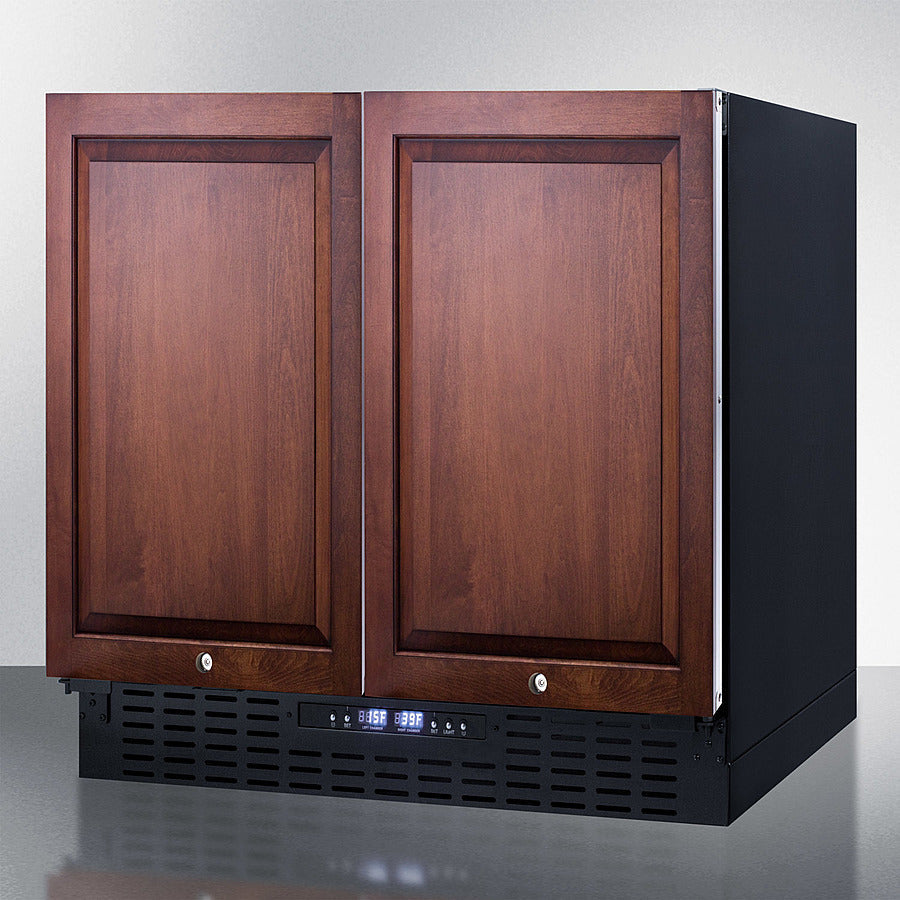

The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle.
Its white interior makes viewing interior contents easy and a jet black cabinet completes the look. The sealed back simplifies cleanup and offers space savings, while its frost-free operation ensures minimal user maintenance.
Each compartment has LED lighting to provide an attractive, energy-efficient presentation. Internal fans help to evenly cool each compartment. The user-friendly front digital display makes temperature control easy with a readout in either Fahrenheit or Celsius.

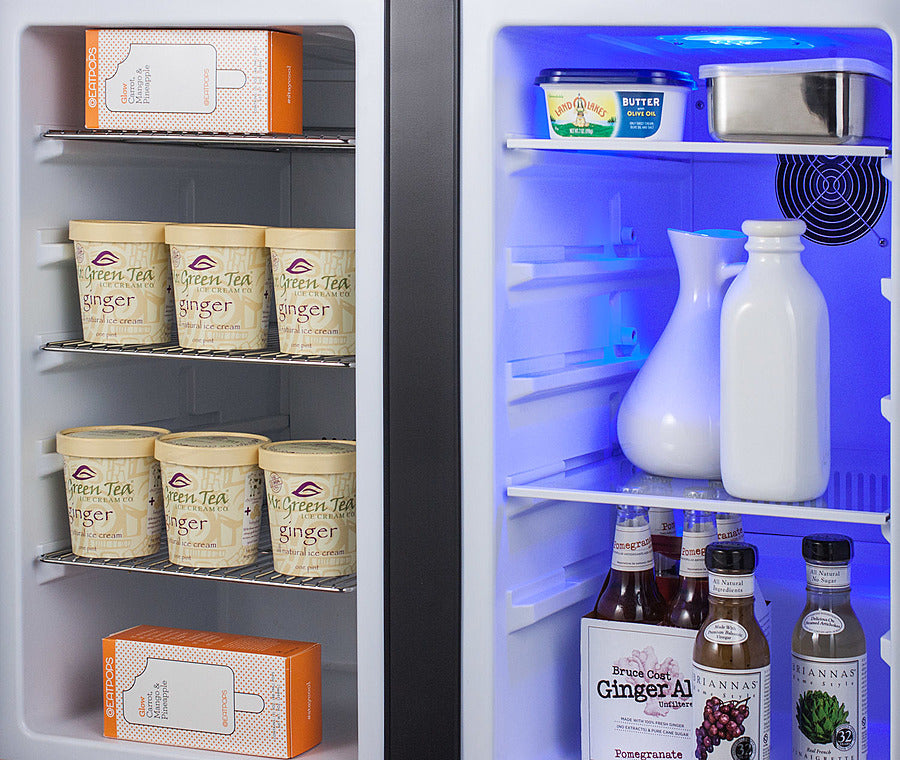

Inside, the FFRF36IF features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation.
Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button.
With its innovative all-in-one design, user-friendly features, and frost-free operation, the FFRF36IF is a great choice for smaller kitchens looking to maximize storage space.
Features
- Commercially approved: ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Built-in capable: Front-breathing system allows the unit to be used built-in
- All-in-one design: Separate refrigerator and freezer sections with single compressor operation
- Panel-ready doors: Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 17 9/16" W x 27 7/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- Frost-free operation: No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
- Digital thermostat: Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
- LED lighting: Interior LED lighting in both sections offers an attractive and energy efficient presentation

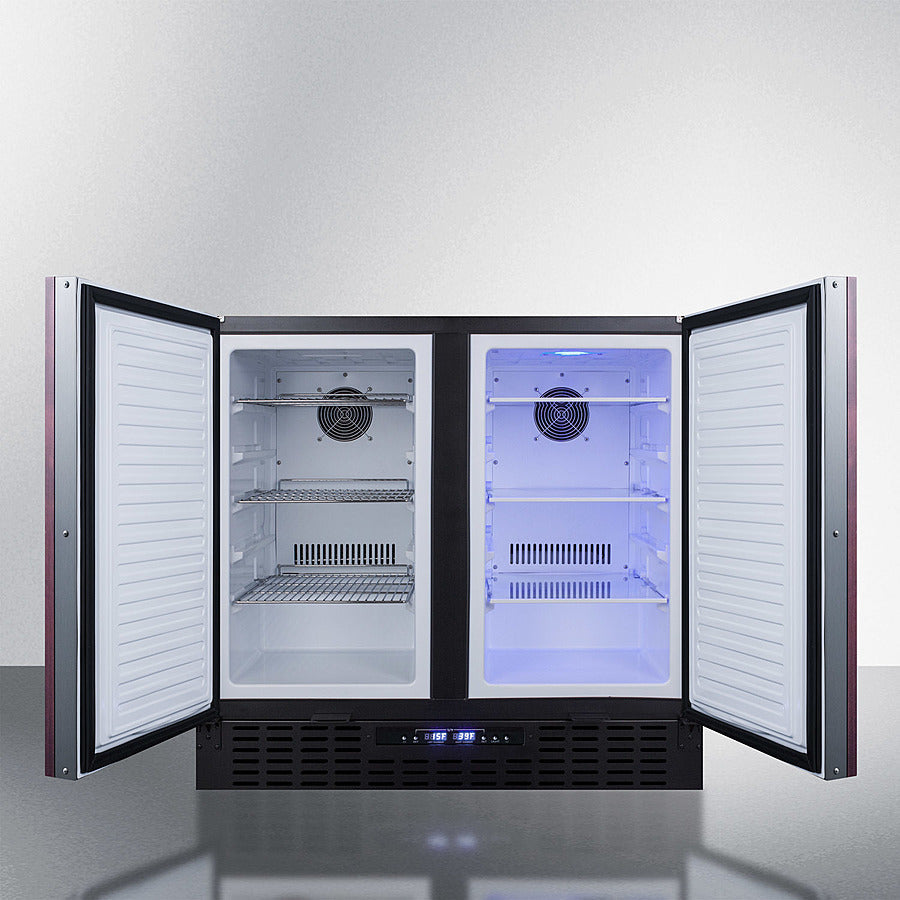

- Adjustable shelves (5 placement options): Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
- Convertible freezer: Freezer compartment temperature can be set to serve as a second refrigerator as needed
- Internal fans: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Sealed back: Space-saving design with no exposed coils in the rear offers easy cleanability
- Temperature memory function: In the event of power loss, the unit will retain its last temperature settings upon power recovery
- Fully finished cabinet: Allows the unit to be used freestanding
- Leveling legs: Two leveling legs ensure the unit is even when placed on uneven surfaces
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 34.25" (87 cm)
- Width: 35.5" (90 cm)
- Depth: 24.25" (62 cm)
- Depth with door at 90°: 42.0" (107 cm)
- Capacity: 5.8 cu.ft. (164 L)
- Defrost Type: Frost-Free
- Door: Stainless Steel
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Energy Usage/Year: 504.0kWh/year
- Amps: 1.3
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 160.0 lbs. (73 kg)
- Shipping Weight: 165.0 lbs. (75 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101067704
Refrigerator-Freezer
- Door Swing: French
- Adjustable Shelves: Yes
- Interior Light: Yes
- Refrigerator - Interior Height: 23.5" (60 cm)
- Refrigerator - Interior Width: 12.75" (32 cm)
- Refrigerator - Interior Depth: 16.75" (43 cm)
- Refrigerator - Capacity: 2.9 cu.ft
- Refrigerator - Shelf Type: Glass
- Refrigerator - Shelf Qty: 3
- Refrigerator - Temperature Range: 36°F to 46°F
- Refrigerator - Refrigerant Type: R600a
- Refrigerator - Refrigerant Amount: 1.59 oz.
- Freezer - Interior Height: 23.5" (60 cm)
- Freezer - Interior Width: 12.75" (32 cm)
- Freezer - Interior Depth: 16.75" (43 cm)
- Freezer - Capacity: 2.9 cu.ft
- Freezer - Shelf Type: Chrome
- Freezer - Shelf Qty: 3
- Thermostat Type: Digital
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.59 oz.
- High Side PSI: 150.0
- Low Side PSI: 50.0
- Level Legs: 2
- Freezer - Temperature Range: -22°F to 46°F
- Compressor Step Height: 4.75" (12 cm)
- Compressor Step Width: 12.75" (32 cm)
- Compressor Step Depth: 4.25" (11 cm)
![Summit 36" Wide Built-In Refrigerator-Freezer with Integrated Door Frame](https://cdn.shopify.com/s/files/1/0020/6382/7008/products/summit-36-wide-built-in-refrigerator-freezer-with-integrated-door-frame-ffrf36if-_6_480x480.jpg?v=1631697648)
Manufacturer Resources
- Brochure w/ Drawings
- Technical Drawing (.dwg)
- Use and Care (Integrated Frame)
- Use and Care
- MSDS Information
- Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
